Very low compression, what to look for?

deafanddiabetic · Post by **deafanddiabetic** » Mon Sep 15, 2014 2:53 pm

Sorry about that G-Man, give this a try.

https://www.youtube.com/watch?v=8CVyf-t ... e=youtu.be

G-Man · Post by **G-Man** » Mon Sep 15, 2014 3:51 pm

Have you got the two o-rings on the two knock pins that go between barrel and head? They go on the two front corner studs.

G

Hoosier Tom · Post by **Hoosier Tom** » Mon Sep 15, 2014 3:58 pm

deafanddiabetic wrote: installed O-Rings on the two posts on the cylinder base

Need clarification on the statement above. The cylinder base is the bottom of the cylinder. The base gasket goes between the case and the bottom of the cylinder. If you truly put the o-rings here and not between the head and the cylinder top it will leak like a sieve.

HT

deafanddiabetic · Post by **deafanddiabetic** » Mon Sep 15, 2014 4:20 pm

Sorry about that guys, I put the O-Rings on those knock pins, I used the fiche to figure out where they went.

BUT, I did just find the source of the leak. It's coming from the bottom left corner of the camshaft cover. I put a new gasket on there, cleaned up the surfaces well and tried reputting in the 4 screws that hold it in place, but they're pretty stripped out. That's making it leak LESS, but I think I need to go buy some hex heds to really torque that sucker down.

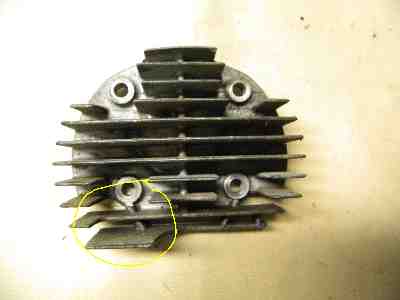

This is where the leak was/is.
