electric starter issue

chris305 · Post by **chris305** » Mon Jun 06, 2016 11:14 pm

I have a problem with my starter and before I tear into the motor I thought I would ask for your advice.

Here is the issue on my 305. when power is put to the starter it spins and I can see the chain moving, but the motor is not turning over. How is the starter sprocket connect to the motor?

What could be the problem?

G-Man · Post by **G-Man** » Tue Jun 07, 2016 1:58 am

Sounds like your starter clutch is slipping. Take off the rotor and the starter clutch is located at the back of the rotor. There are three rollers / springs in there which are still readily available.

G

chris305 · Post by **chris305** » Tue Jun 07, 2016 10:50 pm

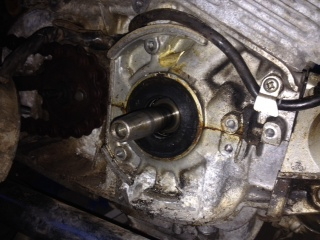

Hi is the parts you mention behind the seal in the picture attached?

chris305 · Post by **chris305** » Tue Jun 07, 2016 11:13 pm

who do you use to buy your parts from?

DianneB · Post by **DianneB** » Wed Jun 08, 2016 4:24 am

The starter clutch is built into the hub of the large sprocket driven by the starter chain.

revlover · Post by **revlover** » Wed Jun 08, 2016 5:38 am

Here is one source for the rebuild kit.

http://www.classichondarestoration.com/ ... d_350.html

Tusk · Post by **Tusk** » Sat Jun 11, 2016 1:22 pm

Greetings. I am working on this same issue for a friends CA77 Dream. I'm having trouble finding and/or figuring out the size/part number for a magneto puller.

Can someone assist please?

Many thanks!

Mark
