ignition switch help needed

Post Reply
chris305
honda305.com Member
Posts: 19
Joined: Sun May 29, 2016 4:30 am
Location: San Jose CA

ignition switch help needed

Post by chris305 » Fri Jun 17, 2016 11:15 pm

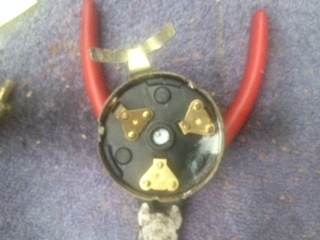

I had to take my ignition switch apart and when I did some of the contacts sprung out of position before I could see how they were configured. Since the contacts can be put in 3 different ways I am not sure how the configuration should be. Can someone let me know the correct configuration of the contacts.See attached picture.
Attachments
honda switch.jpg
honda switch.jpg (60.75 KiB) Viewed 911 times
